LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound

Product Categories

Autoglass PU Sealant [3]
Odorless PU sealant [3]
Aftermarket pu sealant [2]
Construction PU Sealant [64]
High Tensile Strength PU Adhesive [4]
Construction joint sealant [8]
Self-leveling joint sealant [62]
Silicone Gel for Junction box [4]
Waterproofing Coating [1]
Corner Angel PU Adhesive [4]
Epoxy Potting Sealant [6]
PU self-leveling sealant [6]
Silicone self-leveling sealant [5]
Silicone Potting Sealant [33]
Polyurethane Potting Sealant [3]
Silicone Gel [10]
Two Component Silicone Sealant [4]

Shanghai Max Tech Co.,Ltd

Contact Now

LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound

Name: LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound
Brand: Max Tech
Price: 1 USD

Best LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound wholesale

Brand Name : Max Tech

Model Number : 8230

Certification : SGS, UL

Place of Origin : shanghai

MOQ : 100kg

Packaging Details : 15kg per drum

Elongationatbreak : 200-400%

Classification : Other Adhesives

Color : White, Black, Grey

Main Raw Material : Silicone

Temperatureresistance : -50°C to 250°C

Volume : 200L

Cas No : 63148-60-7

Application : Sealing and bonding

Keywords : Neutral Curing Silicone Sealant

Cas : 7085-85-0

Mixingratio : 1:1 by volume or weight

Storagecondition : Store in a cool, dry place below 25°C

Fullcuretime : 24 hours at room temperature

Tensilestrength : 1.5-3.0 MPa

Temperature : -50℃ to 180℃

Material : silicone

Contact Now

LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound

Free Samples, welcome to talk more. and OEM & ODM are welcome.

Two-Component 2.0~3.0W/Mk Power Supply PCB CPU New Energy Sealing Potting Compound Electronic Components Silicone Ab Glue

High Thermal Conductivity 2.0 W/mK Waterproof 1:1 Two-Component High Thermal Conductivity Silicone Potting Compound

High Thermal Conductive 1:1 Mix Red/White Silicone, UL94V-0, -50°C To 200°C Ideal For Electronics Encapsulation, Automotive Module Sealing, Sensor Potting & Circuit Board Protection

Specification

TESTING ITEM	ESTING STANDARD	Part A	Part B
Color	Visual inspection	black viscous liquid	White viscous liquid
Viscosity, cps , 25℃	GB/T 10247-2008	6000±1000	5000±1000
Density,,g/cm3, 25℃	GB/T 15223-1994	2.65±0.05	2.65±0.05
Mixture ratio	Weight Ratio	A:B = 100:100
Viscosity of mixture,4#rotor,cps , 25℃	GB/T 10247-2008	5000±1000
Operation time,mins , 25℃	GB/T 10247-2008	30-50
Initial Setting time, hrs, 25℃	GB/T 10247-2008	3-5hrs
Cure condition	GB/T 10247-2008	25℃/12 hr or 70℃/ 60mins, 80℃/ 30mins
Characteristics after curing
Cured appearance	Visual inspection	Gray elastomer
Hardness, Shore A	GB/T 531-2008	32 ( Shore 00 85)
Thermal conductivity,W/mK	GB/T 10297-1998	2.0±0.1
Tensile strength , Mpa	GB/T 528-1998	>0.3
Elongation , %	GB/T 528-1998	>50
Linear expansion,K-1,ppm	HGT 2625-1994	150
Dielectric strength ,kV/mm, 25℃	GB/T 1695-2005	≥15
Volume resistance,DC 500V, Ω·CM	GB/T 1692-92	1.2×1013
Loss factor(1 MHz)	GB/T 1693-2007	0.01
Dielectric constant(1 MHz)	GB/T 1693-2007	5.8
Application temperature, ℃	GBT 20028-2005	- 60 ∽ 200

Product Description

LED Driver Epoxy Resin Thermal Conductive Silicone Potting Material Adhesive Excellent Double Potting Compound

Description

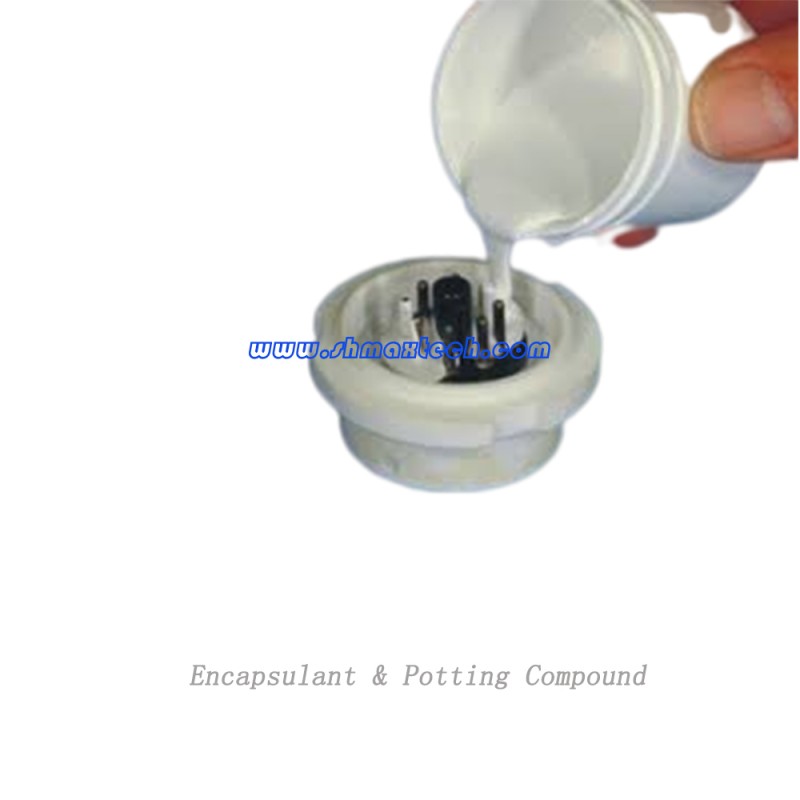

SI8230 is two-component silicone based thermal conductive potting adhesive. It has a good fluidity after mixing, can vulcanize to deep layer in room temperature. The operation time can be adjusted according to the temperature. Used to potting protection of varied heat dissipation and temperature resistance components. Fully compliant with RoHS and SVHC REACH standard.

Typical Applications

●Used for encapsulation of various modules,

* automotive module,

* LED Power driver modules,

* Solar panel junction box,

* EV charging column module,

* Lithium battery pack,

* Capacitor banks,

* Magnetic induction coils,

* Power inverters, etc.

Key Features

1.Two-part 1:1 mixture addition type silicone adhesive 2.Low hardening shrinkage 3.Excellent electrical insulation in high temperature and stability 4.Good waterproof and moisture resistance 5.Excellent flame resistance

Packing Specification

High Thermal Conductive Two-Part Addition-Type Potting Silicone Rubber Part A:2.5 kg/plastic drum Part B:2.5 kg/plastic drum Part A:15 kg/plastic drum Plat B:15 kg/plastic drum

* 24 Drums per Pallet When shipping

Transport &Storage

● When stored at or below 35°C in the original unopened containers, this product has a usable life of 12 months from the date of production. Sampling test is necessary for products which exceed shelf life before taking use. During storage may have little settlement stratification, stirring evenly when use, does not affect performance. It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.

Company Profile

00:17

01:58

Our Advantages

Certifications

Exhibition

Packing & Delivery

FAQ

Q:How long can I get a quote
A:The quotation can be provided no longer than 24hours on condition that we know all detailed requirement.

Q:Do you accept private Label?
A:Yes. ODM & OEM are Welcome.

Q:Can I get a samle before order?
A: Of course. Generally, we provide 1-3 pieces free samples for quality testing and the courier fee be born by customers. Thanks for your understanding.

Q:Do you have MOQ.
A:Yes, Generally ,MOQ is 1000pcs or 1000kg.

Q: How long will finished my order?
A: It’s depend on your order quantity.
Generally, Our production time is 10-15 days after get the payment.

Q:How to find the suitable sealant?
A: Please let me know your application purpose,substrate, application method and all your requirements. We would like give you a better recommendation.
